Plason device - NO-therapy
As a result of the application as the working gas of atmospheric air and use of the contemporary technological and technical solutions with development and production of all systems of device - gas, hydraulic, electrotechnical and electronic - his construction ensures mobility, independence, reliability and operational simplicity, which makes it possible to use the device both in the operating and ambulance conditions and for the dispensary care of patients.
Therapeutic action using the Plason device is achieved by supply of the gas flows of a different temperature (from 4000°C to the ambient temperature), but with the constant content of the nitric oxide (NO) in the flow, to the biological tissues.

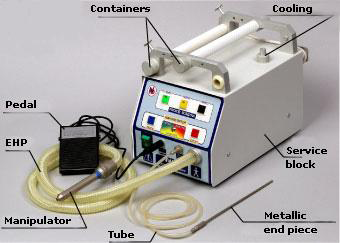

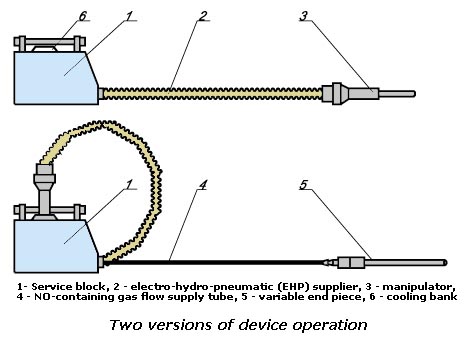

For obtaining of the NO-containing gas flow (NO-CGF) with room temperature, the scheme of labyrinth type additional built-in cooler is realized. As shown in figure, any manipulator can be established into the special nest of cooler, located in the upper part of the apparatus. As a result of cooling in the built-in cooler the temperature of the flow, generated by manipulator, is reduced to the room temperature. The supply of the cooled NO- containing gas flow (NO-CGF) to the object is accomplished by special flexible supply with interchangeable tips.
